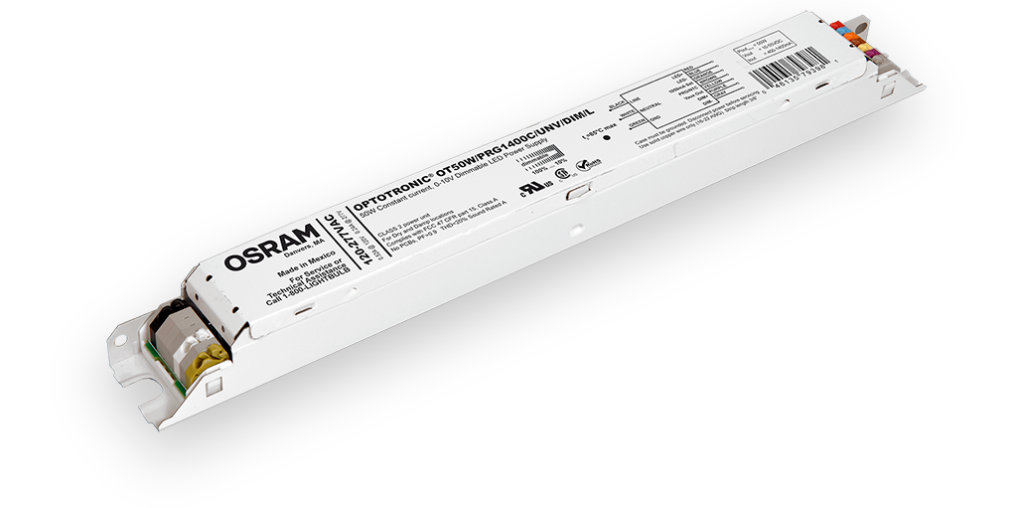

Optotronic Drivers

Excellent experience with 1 billion installed ECGs

Sachdeva Lighting offering best Osram products such as

Let’s have a look for top-rated Osram Lighting series:

Click Now to explore : Preva LED Core  |  Preva Led Sky G2 Module  |  Basic flex/ Value Flex |  Gino Led HO Module  |  Preva Led Coin

CONSTANT CURRENT INDOOR ​​ - COMPACT SERIES

Product

Iout (mA)

Vout

Pout (W)

LxWxH (mm)

ECO with 4 Current ​​ Selections - Non Dimmable

ELEMENT LD 20/220-240/350 CS IN

190/250/290/350

27-54

5.13–18.9

97X43X29.5

ELEMENT LD 30/220-240/700 CS IN

400/500/600/700

21-43

14.7–30.1

97X43X29.5

ELEMENT LD 45/220-240/1A0 CS IN

800/900/950/1050

21-43

16.8–45.2

103x67x29.5

FIT with 4 Current ​​ Selections - Non Dimmable

OT FIT 20/220-240/350 CS IN

190/250/290/350

27-54

5.13–18.9

97x43x29.5

OT FIT 25/220-240/800 CS IN

500/600/700/800

15-31

7.5–24.8

89.5x46x31.5

OT FIT 30/220-240/700 CS IN

400/500/600/700

21-43

14.7–30.1

103x67x29.5

OT FIT 45/220-240/1A0 CS IN

800/900/9501050

21-43

16.8–45.2

103x67x29.5

OT FIT 50/220-240/800 CS IN

500/600/700/800

30-61

15–48.8

120x55x35











Phase Cut - Dimmable

OTe 10/220-240/700 PC

700

7–14

5–10

95x53x25

OTe 13/220-240/350 PC

350

18-38

6.5–13.5

95x53x25

OTe 18/220-240/350 PC

350

2-54

9.5–19

119x53x30

OTe 25/220-240/700 PC

700

18-36

12.5–25

95x53x30

OTe 18/220-240/500 PC

500

18-36

9–18

95x53x30

OTE 35/220-240/700 PC

700

27-50

19-35

153x54x36

Analog (1-10V) - Dimmable with programmable current

OT25W/PRG1250C/UNV/DIM (10-100% Dim)

350-1250

10-55

25

127x61x31

OT25W/PRG1250C/UNV/DIM-1 (1-100%)

150-1250

10-55

25

127x61x31

OT40W/PRG1400C/UNV/DIM (10-100%)

400-1400

10-55

40

127x61x31

OT40W/PRG1400C/UNV/DIM-1 (1-100%)​​

​​ 400-1400 ​​

10-55

40

127x61x31











DALI - Dimmable with programmable current

OTi DALI 35/220-240/1A0 LT2

450-1050

15-54

15-35

103x67x29.5

OTi DALI 25/220-240/700 LT2

250-700

12-54

10-27

103x67x29.5

OTi DALI 15/220-240/1A0 LT2

150-1050

7.5-54

3- 18

95x53x30

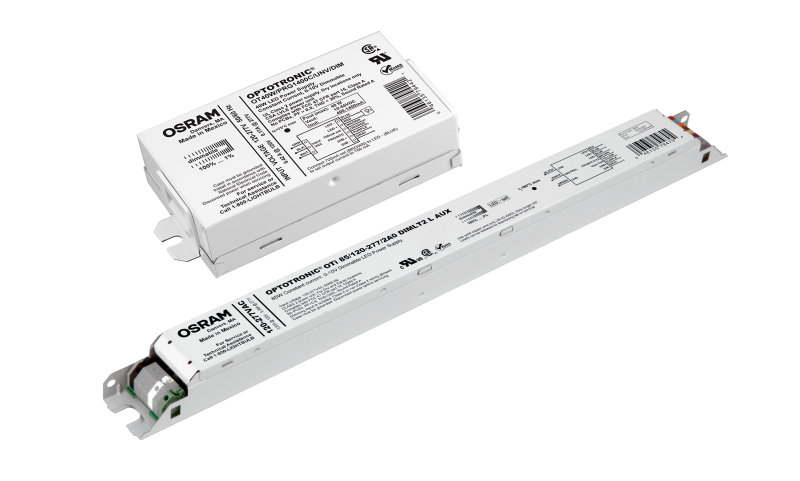

CONSTANT CURRENT INDOOR - LINEAR SERIES

FIT with 4 Current Selections - Non Dimmable

OT FIT 35/220-240/700 CS L IN

400/500/600/700

27-54

10.8 – 37.8

280x30x21

OT FIT 55/220-240/1A0 CS L IN

800/900/950/1050

27-54

21.6 – 56.7

280x30x21

OT FIT 75/220-240/1A4 CS L IN

1100/1200/1300/1400

27-54

29.7 – 75.6

360x30x21











FIT with LEDset Gen 2 current setting - Non Dimmable

OT FIT 35/220-240/350 D LT2 L

75 -350

54-216

4.1 -35

280x30x21

OT FIT 75/220-240/550 D LT 2 L

125-550

54-216

6.8 - 75

280x30x21

OT FIT 120/220-240/750 D LT 2 L

250-750

54-216

13.5 - 120

360 X 30 X 21











DALI - Dimmable with programmable current

OTi DALI 80/220-240/2A1 LT2 L

1000-2100

27-54

32-80

360x30x21

OTi DALI 80/220-240/1A6 LT2 L

600-1600

27-54

32-80

360x30x21

OTi DALI 50/220-240/1A4 LT2 L

600-1400

27-54

20-54

360x30x21

OTi DALI 90/220-240/1A0 LT2 L (NON-SELV)

250-1000

54-240

13.5-90

280x30x21





CONSTANT CURRENT OUTDOOR DRIVERS

Product

Iout (mA)

Vout

Pout (W)

LxWxH (mm)

IP65 - Non-Dimmable

OT 08/240/450 P5

450

15- 18

8

97.5 X 50 X 33

OT 12/240/690 P5

690

15- 18

12

97.5 X 50 X 33

OT 16/240/650 P5

650

21- 24

16

97.5 X 50 X 33

OT 20/240/680 P5

680

27 - 30

20

97.5 X 50 X 33

OT 30/240/680 P5

680

40 - 45

30

121.5 X 50 X 33

OT 45/240/1A1 P5

1100

31 - 39

45

107.5 X 68 X 33

OT 65/240/2A0 P5

2000

27 - 33

65

167 X 60 X 37.5

OT 105/2402A3 P5

2300

40 - 46

105

209 X 60 X 37.50

OT 135/240/2A9 P5

2900

40 - 46

135

209 X 60 X 37.50

OT 180/240/4A0 P5

4000

40 - 46

185

251 X 60 X 37.50

OT 50/120-277/700 P5

700

24-74

17-50

168x50x30

OT 100/120-277/700 P5

700

55-152

50-100

168x60x38

OT 180/120-277/700 P5

700

115-257

80-180

251x60x38











IP64 - 2DIM (1 - 10 V / AstroDIM)

OT 50/120-277/800 2DIMLT2 P6

350-800

30-115

50

168x50x30

OT 50/120-277/1A2 2DIMLT2 P6

600-1250

20-55

50

168x50x30

OT 100/120-277/800 2DIMLT2 P

350-800

50-186

100

168x68x38

OT 110/120-277/1A4 2DIMLT2 P

600-1400

35-85

110

168x68x38

IP66 - 2DIM (1 - 10 V / AstroDIM)

OTi 50W/UNV/2100C/2DIMLT2/P6

1000-2100

15-55

50

169x43.5x30

OT180W/UNV/1250C/2DIMLT2/P6

600-1250

70 -210

180

240.5x60x38

OT180W/UNV/800C/2DIMLT2/P6

350-800

82-280

180

240.5x60x38











IP>54-4 DIM (DALI / StepDIM /AstroDIM / MainsDIM

OT 40/120-277/1A0 4DIMLT2 E

70-1050

18-56

40

123x79x33

OT 60/170-240/1A0 4DIMLT2 E

70-1050

30-115

60

133x77x40

OT 90/170-240/1A0 4DIMLT2 E

70-1050

57-186

90

133x77x40

OT 165/170-240/1A0 4DIMLT2 E

70-1050

90-285

165

173x100x40











CONSTANT VOLTAGE DRIVERS

Product

IP

Vout

Pout (W)

LxWxH (mm)

24V DRIVERS

Non-Dimmable

OTZ 24/220-240/24

IP20

24

10-24

130x41x31

OTZ 50/220-240/24

IP20

24

20-50

190×46×32

OT 80/220-240/24 P

IP67

24

0-80

250x50x34

OT 120/220-240/24 P

IP67

24

0-120

250x60x39

OTE 120/220-240/24 E

IP64

24

12-120

258x51.2x44.5

OT 240/220-240/24 P

IP67

24

0-240

250x80x39











Analog (1-10V) Dimmable

OT 80/24 DIM P

IP67

24

0-80

250x50x34

OT 120/24 DIM P

IP67

24

0-120

25x60x39

OT 240/24 DIM P

IP67

24

0-240

250x80x39











DALI Dimmable

OTi DALI 50/220-240/24 1-4 CHDIM

IP20

24

0-50

346x32x22

OTI DALI 75/220-240/24 1-4CHDIM

IP20

24

0-75

220x46.2x180

OTI DALI 80/220-240/24 1-4 CH

IP20

24

0-80

345x32x22

OTI DALI 50/220-240/24 TW

IP20

24

0-50

346x32x22

OTI DALI 80/220-240/24 TW

IP20

24

0-80

347x32x22

12V DRIVERS

Non-Dimmable

OTZ 24/220-240/12

IP20

12

24

130x41x31

OTZ 50/220-240/12

IP20

12

50

190x46x32

OTZ 75/220-240/12

IP20

12

75

250×47×41.5

OT 30/220-240/12 P

IP66

12

30

220X40X22

OTE 60/110-277/12 E

IP64

12

60

241x43x30

OT 60/220-240/12 P

IP67

12

60

180x50x34

OT 120/220-240/12 P

IP67

12

120

250x60x39

OTE 120/110-277/12 E

IP64

12

120

258x51.2x44.5

DIMMER INTERFACES

OTi DALI DIM

IP20

12/24

60/120

172x42x20

OT DMX RGB DIM

IP20

12/24

72/144

172x42x20

OT DIM

IP20

12/24

60/120

172x42x20
